FormD T1 V2.1 SFF Build

Compact small-form-factor gaming PC built following the Eiga Works FormD T1 5090 Air guide.

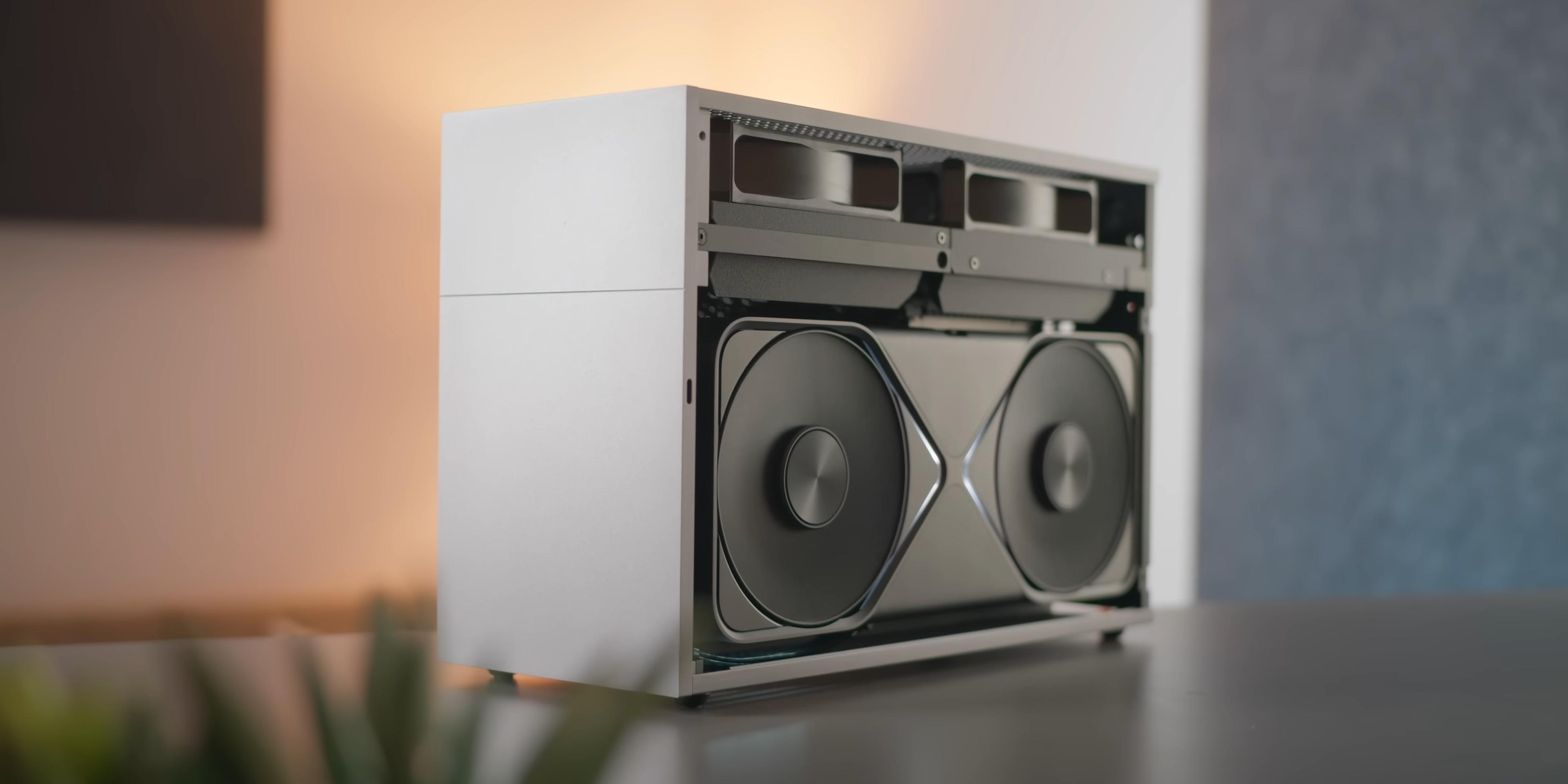

FormD T1 V2.1 Photo credit: Eiga Works

Parts List

Component Part
CPU AMD Ryzen 7 9800X3D
CPU Cooler Thermalright AXP90-X47 Full Copper
Cooler Fan Noctua NF-A9x14 HS-PWM chromax.black.swap
Motherboard ASUS ROG STRIX B850-I GAMING WIFI (Mini ITX, AM5)
RAM Patriot Venom 64 GB (2x32 GB) DDR5-6000 CL30
Storage Samsung 990 Pro 2 TB (M.2 PCIe 4.0 x4 NVMe)
GPU NVIDIA GeForce RTX 5080 Founders Edition 16 GB
Case FormD T1 V2.1
Case Add-ons T1 GPU Travel Kit, T1 PCIe SS200 Gen5 Riser, T1 Essentials Pack
PSU Corsair SF1000 (2024) 80+ Platinum, SFX
Exhaust Fans 2x Phanteks T30-120
Contact Frame Thermal Grizzly AM5 Contact Frame
Backplate Thermal Grizzly AM5 Short Backplate
Thermal Paste Thermal Grizzly Duronaut
Cables Custom Black Teflon cables from CablesterCustom (24P 170mm, CPU 8P 290mm, GPU 12V2X6 300mm)
Screws 12x M3 flat head 4mm, 16x M3 countersunk 5mm, 11x M3 countersunk 8mm

PCPartPicker list

Build Guide

This build follows the Eiga guide which targets the RTX 5090 FE, but uses an RTX 5080 FE instead. The assembly process is identical since both cards share the same Founders Edition dual-slot cooler design. Same screws as the guide.

GPU Undervolt (RTX 5080 FE)

Using MSI Afterburner (Beta with RTX 50 series support).

Method: Set Core Clock offset to -250 MHz, open Curve Editor (Ctrl+F), drag the 950mV point to target frequency, flatten everything to the right with Shift + click-drag in empty space then Shift+Enter twice.

Stock Undervolted (950mV/2900 + 1000mem)
Core Clock 2742 MHz 2830 MHz
Memory 1875 MHz 2000 MHz
Voltage 1.004V 0.934V
Power 251W 251W
GPU Temp 62.3°C 61.4°C
VRAM Temp 72.3°C 72.4°C

+88 MHz over stock at the same power draw, 1°C cooler. For reference, the RTX 5080 FE in open-air reviews (GamersNexus) runs 65-67°C -- our T1 build undervolted runs 61-63°C.

CPU BIOS Optimization (9800X3D)

The Problem

Battlefield 6 (128 players): CPU averaging 97°C at 108W, hitting the 95°C thermal throttle. EXPO auto-voltages dangerously high: VSOC 1.272V, VDDIO 1.376V.

BIOS Settings (ASUS ROG STRIX B850-I, BIOS 1644)

Use the AMD Overclocking path, NOT Ai Tweaker for PBO/CO. The same PBO options also exist under Ai Tweaker -> Precision Boost Overdrive; keep those on Auto so limits are only set in one place.

Advanced -> AMD Overclocking -> [Accept Disclaimer] -> Precision Boost Overdrive

Setting Stock Optimized
PBO Auto Advanced
PBO Limits Auto Manual
PPT Limit 162W 90000 (90W)
TDC Limit 120A 75000 (75A)
EDC Limit 180A 110000 (110A)
PBO Scalar Auto Manual, 1X
Platform Thermal Throttle Limit 95°C 85°C
Curve Optimizer Disabled All Cores, Negative, 30

Ai Tweaker

Setting Stock Optimized
CPU SOC Voltage (VDDSOC Voltage Override) Auto (1.272V) Manual, 1.200V
CPU VDDIO / MC Voltage Auto (1.376V) 1.300V
DIGI+ Power Control -> CPU Load-line Calibration Auto Level 1

Advanced -> AMD CBS -> CPU Common Options

Setting Stock Optimized
Global C-state Control Auto Enabled

Notes:

Why These Settings

Stability Testing (Curve Optimizer)

Tool: CoreCycler (default config, Prime95, ~6 min per core). Loads one core at a time at max boost, which is where an overly aggressive CO fails. A core that errors is skipped early, so a full 6 min on every core means no errors. WHEA errors checked in Event Viewer -> Windows Logs -> System, filtered on source WHEA-Logger (Event ID 19 = corrected, 18 = fatal; core = Processor APIC ID / 2).

CO -25 CO -30
Iterations 2 1.6
CoreCycler errors 0 0
WHEA errors 0 0
Tested core clock 5225 MHz 5225 MHz
Avg VID 1.20V 1.17V
Package Power avg 68.9W 66.1W
CPU Temp avg / max 81.3°C / 86.0°C 80.4°C / 85.0°C
Thermal throttling (HTC) No No

Both runs were logged with Windows CPU idle disabled (all cores held in C0), which inflated package power and temps by ~30W during a single-core test. See below.

Status: -30 passed short runs. Still to do: one overnight CoreCycler run (6-8h), a WHEA check the next morning, then a week of normal use (watch for crashes at idle, on wake from sleep, on loading screens). Fallback if anything fails: -25 (validated), or Per Core with only the failing core at 25.

Windows Power Plan

The active plan was optimizerDuck PowerPlan (installed by an optimization tool), which sets Processor idle disable on AC. Every core stayed in C0 at full clock 100% of the time (0% C1/C6 residency), even when idle.

Check current state (admin terminal):

powercfg /qh SCHEME_CURRENT SUB_PROCESSOR IDLEDISABLE

Current AC Power Setting Index: 0x00000001 = idle disabled, 0x00000000 = idle enabled.

Toggle (applies instantly, no reboot):

:: Enable idle (kept)
powercfg /setacvalueindex SCHEME_CURRENT SUB_PROCESSOR IDLEDISABLE 0
powercfg /setactive SCHEME_CURRENT

:: Disable idle
powercfg /setacvalueindex SCHEME_CURRENT SUB_PROCESSOR IDLEDISABLE 1
powercfg /setactive SCHEME_CURRENT

To show the setting in the classic Advanced power settings UI: powercfg -attributes SUB_PROCESSOR IDLEDISABLE -ATTRIB_HIDE

Idle Disabled vs Enabled -- Battlefield 6

Same scene, game restarted between runs, HWiNFO + PresentMon logging. Menus, loading screens and the first minute excluded (~5 min and ~7 min of gameplay). One run each; the idle-enabled run was done second in an already warm case (motherboard 56°C vs 52°C).

Idle disabled (C0) Idle enabled Change
FPS avg 195 191 -2% (run-to-run noise)
1% low 139.8 140.4 same
0.1% low 135.3 136.5 same
Frame time 99th pct 6.99 ms 6.92 ms same
Worst spike (0.1% high max) 56.6 ms 14.1 ms better with idle
CPU Package Power 87.1W 84.4W -2.7W
CPU Temp avg 85.9°C 85.4°C -0.5°C
Time at thermal limit 92% 80% -12 pts

Decision: idle enabled. No smoothness benefit from disabling idle on this system. BF6 keeps all 8 cores busy anyway (C1 ~25%, no C6), so the in-game saving is small; the big saving (~30W) is at the desktop and in light loads.

Optimization tools can re-apply their plan on update or reinstall. If temps rise for no reason, re-check with powercfg /qh.

Fan Control

Adapted from Eiga's FanControl config (originally for 5090 FE), swapping GPU identifiers from GB202-A to GB203-A.

CPU Fan (Noctua NF-A9x14, driven by CPU Tctl/Tdie):

Temp Fan %
50-60°C 30%
60-70°C 35%
70-80°C 40%
80-92°C 45%
92°C+ 50%

Exhaust Fans (2x Phanteks T30, driven by a Mix sensor -- max of GPU temp and CPU temp with -15°C offset):

Temp Fan %
50-60°C 40%
60-65°C 50%
65-75°C 60%
75°C+ 70%

GPU fans left on Auto (firmware control). FanControl and MSI Afterburner both set to start with Windows minimized.

Observation: this curve is silence-first. The CPU fan tops out around 1450 RPM, and in BF6 the CPU sits on the 85°C limit 80-92% of the time, averaging ~4980 MHz instead of 5225 MHz. Performance impact is small (GPU ~94% loaded), but if lower CPU temps are wanted, raise only the top steps, e.g.:

Temp Eiga Candidate
70-80°C 40% 45%
80-85°C 45% 60%
85°C+ 50% 75%

Adding a few seconds of response time and 3-5°C hysteresis also stops the fan chasing X3D temperature spikes.

Thermals

Cinebench R23 (10-minute Multi-Core)

Optimized column: CO -20, 90W PPT cap.

Stock Optimized Change
Score ~20,000 19,650 -1.7%
CPU Temp avg 95.0°C 81.0°C -14°C
CPU Temp max 95.6°C 83.2°C -12.4°C
Package Power avg 110.3W 89.4W -20.9W
Package Power max 138.6W 90.0W -48.6W
SoC Power 16.2W 12.7W -3.5W
VSOC 1.272V 1.20V -72mV
VDDIO 1.376V 1.30V -76mV
Bottleneck Thermal (95°C wall) PPT (99.4%) --

Battlefield 6 (128 Players)

Optimized column: CO -20, no PPT cap (PPT % is relative to the stock ~162W limit), idle disabled.

Stock Optimized Change
CPU Temp avg 97°C 82°C -15°C
CPU Temp max 97°C 86.9°C -10°C
Package Power avg 108W 84.7W -23.3W
Core Clock avg -- 5064 MHz Boosting freely
PPT Used -- 52% Nowhere near limit

Current config (CO -30, 90W PPT, idle enabled) -- see the idle test above:

Metric Value
FPS avg / 1% low / 0.1% low 191 / 140.4 / 136.5
CPU Temp avg / max 85.4°C / 86.5°C
Package Power avg 84.4W (94% of PPT)
Core Clock avg 4990 MHz
Time at 85°C thermal limit 80%
GPU Load avg 94%

3DMark Time Spy

Run details: 3dmark

Metric Score
Overall 27,511
Graphics 31,888
CPU 15,476

GPU (950mV undervolt + 1000 memory):

Metric Avg Max
GPU Clock 2727 MHz 2805 MHz
GPU Temp 61.4°C 67.7°C
VRAM Temp 64.5°C 72.0°C
GPU Power 274.6W 326.4W
TDP Used 76.8% 91.0%
Fan Speed 40% 43%

CPU (CO -20, 85°C thermal limit, no PPT cap):

Metric Avg Max
Core Clock 4678 MHz 5225 MHz
CPU Temp 69.5°C 86.5°C
Package Power 60.5W 110.4W
PPT Used 37.3% 68.2%

Graphics score of 31,888 is within the normal range for a stock RTX 5080 FE (30,229-32,642 per reviews), confirming the 950mV undervolt has no performance penalty in 3DMark. CPU barely breaks a sweat at 69.5°C average.
